MFPCA of 1- and 2-dimensional data

Example of multivariate functional principal components analysis of a combinaison of 1- and 2-dimensional data.

# Author: Steven Golovkine <steven_golovkine@icloud.com>
# License: MIT

# Load packages
import matplotlib.pyplot as plt
import numpy as np

from FDApy.representation import DenseArgvals
from FDApy.simulation import KarhunenLoeve
from FDApy.preprocessing import MFPCA
from FDApy.visualization import plot, plot_multivariate

# Set general parameters
rng = 42
n_obs = 50
idx = 5


# Parameters of the basis
name = ["bsplines", ("fourier", "fourier")]
n_functions = [9, (3, 3)]
argvals = [
    DenseArgvals({"input_dim_0": np.linspace(0, 1, 101)}),
    DenseArgvals(
        {"input_dim_0": np.linspace(0, 1, 21), "input_dim_1": np.linspace(0, 1, 21)}
    ),
]

We simulate \(N = 50\) curves of a 2-dimensional process. The first component of the process is defined on the one-dimensional observation grid \(\{0, 0.01, 0.02, \cdots, 1\}\), based on the first \(K = 5\) B-splines basis functions on \([0, 1]\) and the variance of the scores random variables equal to \(1\). The second component of the process is defined on the two-dimensional observation grid \(\{0, 0.05, 0.1, \cdots, 1\} \times \{0, 0.05, 0.1, \cdots, 1\}\), based on the tensor product of the first \(K = 5\) Fourier basis functions on \([0, 1] \times [0, 1]\) and the variance of the scores random variables equal to \(1\).

kl = KarhunenLoeve(
    basis_name=name, n_functions=n_functions, argvals=argvals, random_state=rng
)
kl.new(n_obs=50)
data = kl.data

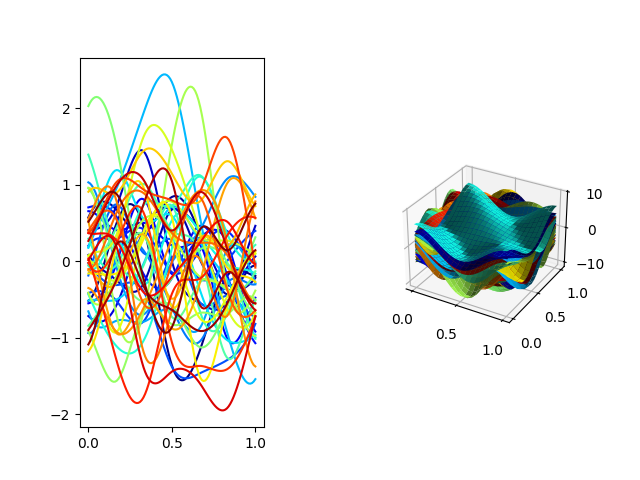

_ = plot_multivariate(data)

Covariance decomposition

Perform multivariate FPCA with an estimation of the variance explained for the first component and a prespecified number of components for the second component using the decomposition of the covariance operator. The decomposition of the covariance operator is based on the FCP-TPA algorithm for 2-dimensional data, which is an iterative algorithm. The number of components has thus to be prespecified.

univariate_expansions = [
    {"method": "UFPCA", "n_components": 15, "method_smoothing": "PS"},
    {"method": "FCPTPA", "n_components": 20},
]
mfpca_cov = MFPCA(
    n_components=0.9, method="covariance", univariate_expansions=univariate_expansions
)
mfpca_cov.fit(data)

/home/docs/checkouts/readthedocs.org/user_builds/fdapy/checkouts/v1.0.2/FDApy/representation/functional_data.py:1119: UserWarning: The estimation of the variance of the noise is not performed for data with dimension larger than 1 and is set to 0.
  warnings.warn(

Estimate the scores – projection of the curves onto the eigenfunctions – by numerical integration.

scores_cov = mfpca_cov.transform(data, method="NumInt")

# Plot of the scores
_ = plt.scatter(scores_cov[:, 0], scores_cov[:, 1])

Reconstruct the curves using the scores.

data_recons_cov = mfpca_cov.inverse_transform(scores_cov)

Inner-product matrix decomposition

Perform multivariate FPCA with an estimation of the number of components by the percentage of variance explained using a decomposition of the inner-product matrix.

mfpca_innpro = MFPCA(n_components=0.95, method="inner-product")
mfpca_innpro.fit(data)

/home/docs/checkouts/readthedocs.org/user_builds/fdapy/checkouts/v1.0.2/FDApy/representation/functional_data.py:1119: UserWarning: The estimation of the variance of the noise is not performed for data with dimension larger than 1 and is set to 0.
  warnings.warn(

Estimate the scores – projection of the curves onto the eigenfunctions – using the eigenvectors from the decomposition of the inner-product matrix.

scores_innpro = mfpca_innpro.transform(method="InnPro")


# Plot of the scores
_ = plt.scatter(scores_innpro[:, 0], scores_innpro[:, 1])

Reconstruct the surfaces using the scores.

data_recons_innpro = mfpca_innpro.inverse_transform(scores_innpro)

# Plot an example of the curve reconstruction

indexes = np.random.choice(n_obs, 5)

colors_numint = np.array([[0.9, 0, 0, 1]])
colors_pace = np.array([[0, 0.9, 0, 1]])
colors_innpro = np.array([[0.9, 0, 0.9, 1]])

fig, axes = plt.subplots(nrows=5, ncols=4, figsize=(16, 16))
for idx_plot, idx in enumerate(indexes):
    plot(data.data[0][idx], ax=axes[idx_plot, 0], label="True")
    plot(
        data_recons_cov.data[0][idx],
        colors=colors_numint,
        ax=axes[idx_plot, 0],
        label="Reconstruction NumInt",
    )
    plot(
        data_recons_innpro.data[0][idx],
        colors=colors_innpro,
        ax=axes[idx_plot, 0],
        label="Reconstruction InnPro",
    )
    axes[idx_plot, 0].legend()

    axes[idx_plot, 1] = plot(data.data[1][idx], ax=axes[idx_plot, 1])
    axes[idx_plot, 1].set_title("True")

    axes[idx_plot, 2] = plot(data_recons_cov.data[1][idx], ax=axes[idx_plot, 2])
    axes[idx_plot, 2].set_title("FCPTPA")

    axes[idx_plot, 3] = plot(data_recons_innpro.data[1][idx], ax=axes[idx_plot, 3])
    axes[idx_plot, 3].set_title("InnPro")

plt.show()
