MFPCA of 1-dimensional data

Example of multivariate functional principal components analysis of 1-dimensional data.

# Author: Steven Golovkine <steven_golovkine@icloud.com>
# License: MIT

# Load packages
import matplotlib.pyplot as plt
import numpy as np

from FDApy.simulation.karhunen import KarhunenLoeve
from FDApy.preprocessing.dim_reduction.fpca import MFPCA
from FDApy.visualization.plot import plot, plot_multivariate

# Set general parameters
rng = 42
n_obs = 50
idx = 5
colors = np.array([[0.5, 0, 0, 1]])


# Parameters of the basis
name = ['bsplines', 'fourier']
n_functions = 5

We simulate \(N = 50\) curves of a 2-dimensional process. The first component of the process is defined on the one-dimensional observation grid \(\{0, 0.01, 0.02, \cdots, 1\}\), based on the first \(K = 5\) B-splines basis functions on \([0, 1]\) and the variance of the scores random variables equal to \(1\). The second component of the process is defined on the one-dimensional observation grid \(\{0, 0.01, 0.02, \cdots, 1\}\), based on the first \(K = 5\) Fourier basis functions on \([0, 1]\) and the variance of the scores random variables equal to \(1\).

kl = KarhunenLoeve(
     basis_name=name, n_functions=n_functions, random_state=rng
)
kl.new(n_obs=n_obs)
kl.add_noise(noise_variance=0.05)
data = kl.noisy_data

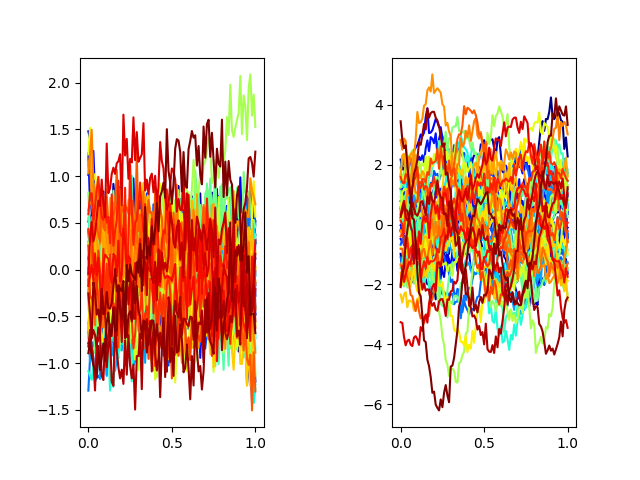

_ = plot_multivariate(data)

Covariance decomposition

Perform multivariate FPCA with an estimation of the number of components by the percentage of variance explained using a decomposition of the covariance operator.

mfpca_cov = MFPCA(n_components=[0.99, 0.99], method='covariance')
mfpca_cov.fit(data)

# Plot the eigenfunctions

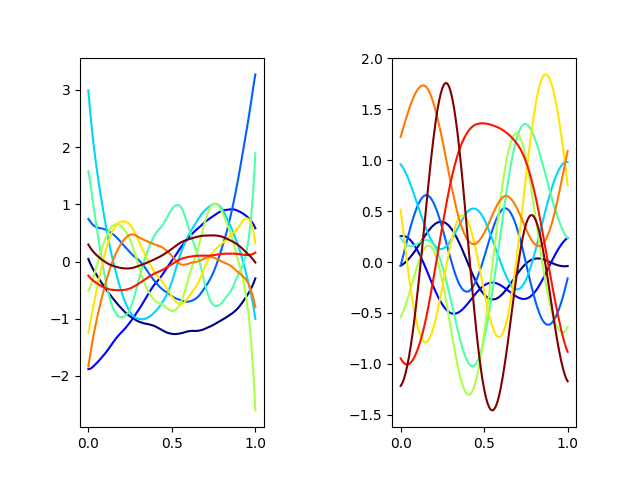

_ = plot_multivariate(mfpca_cov.eigenfunctions)

Estimate the scores – projection of the curves onto the eigenfunctions.

scores_numint = mfpca_cov.transform(data, method='NumInt')

# Plot of the scores

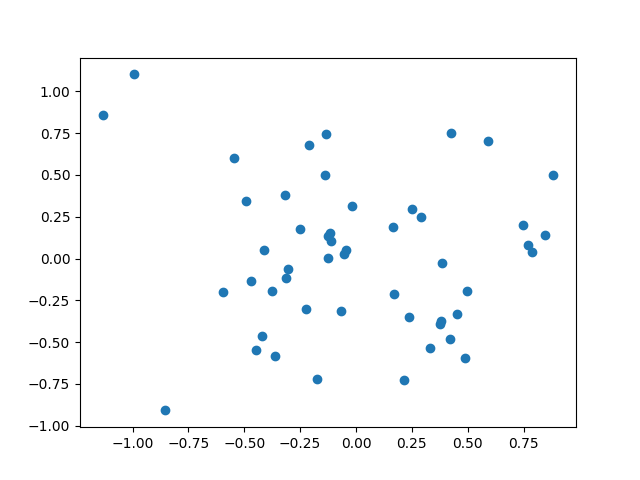

_ = plt.scatter(scores_numint[:, 0], scores_numint[:, 1])

Reconstruct the curves using the scores.

data_recons_numint = mfpca_cov.inverse_transform(scores_numint)

Inner-product matrix decomposition

Perform univariate FPCA with an estimation of the number of components by the percentage of variance explained using a decomposition of the inner-product matrix.

mfpca_innpro = MFPCA(n_components=0.99, method='inner-product')
mfpca_innpro.fit(data)

# Plot the eigenfunctions

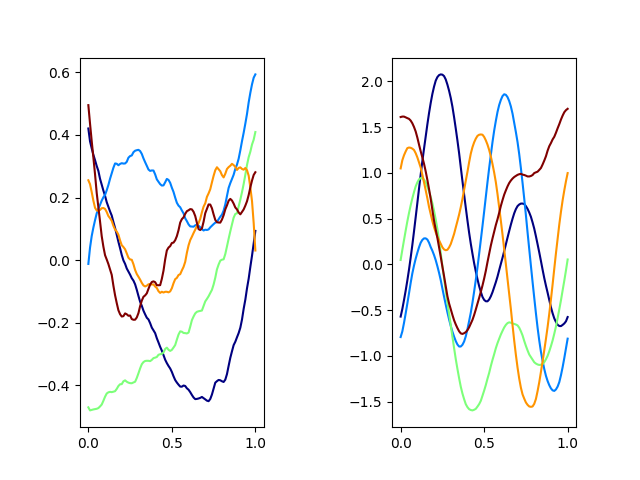

_ = plot_multivariate(mfpca_innpro.eigenfunctions)

Estimate the scores – projection of the curves onto the eigenfunctions – using the eigenvectors from the decomposition of the inner-product matrix.

scores_innpro = mfpca_innpro.transform(method='InnPro')

# Plot of the scores

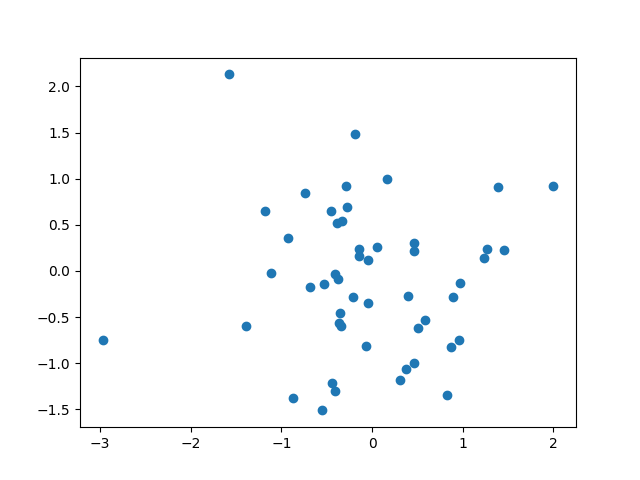

_ = plt.scatter(scores_innpro[:, 0], scores_innpro[:, 1])

Reconstruct the curves using the scores.

data_recons_innpro = mfpca_innpro.inverse_transform(scores_innpro)

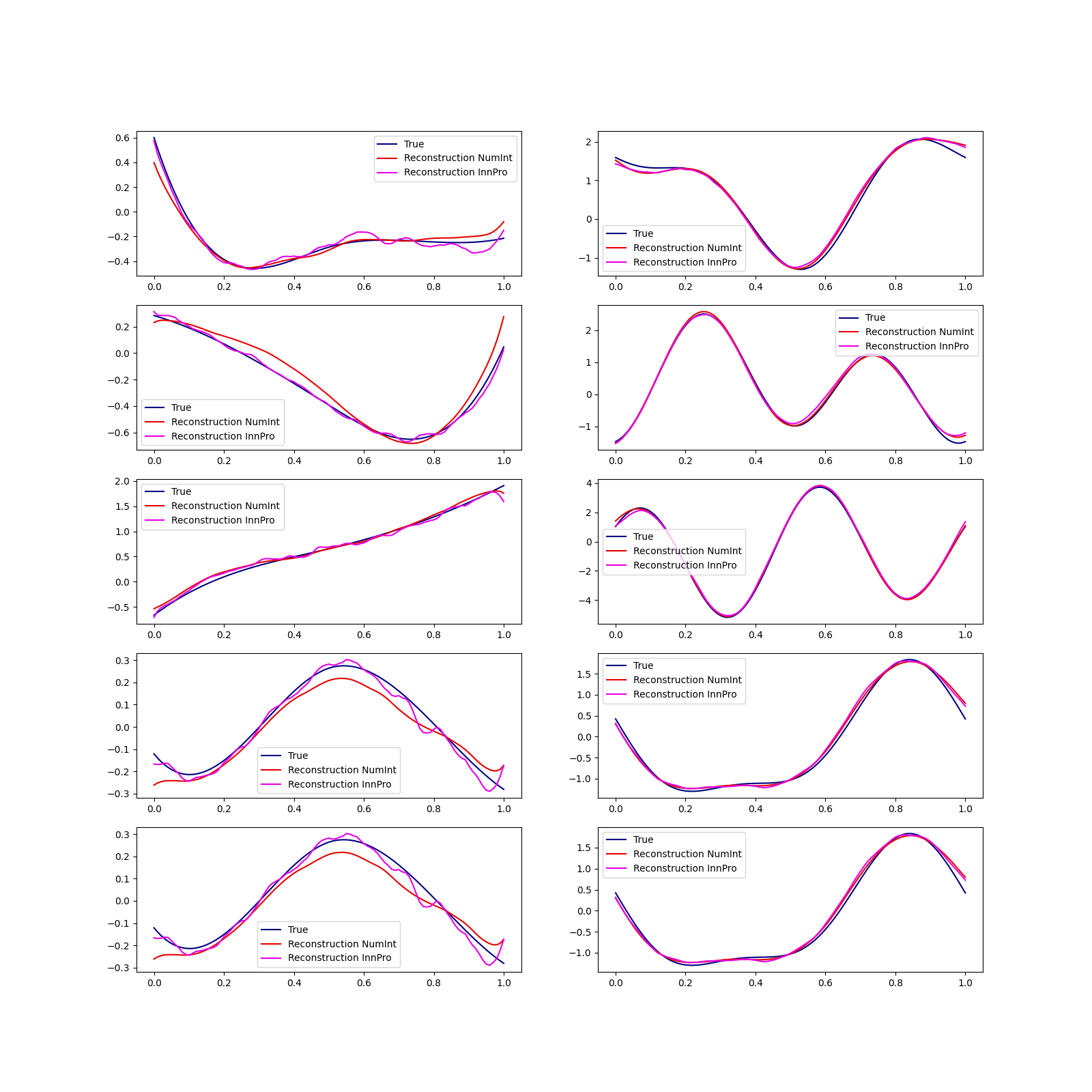

Comparison of the methods.

colors_numint = np.array([[0.9, 0, 0, 1]])
colors_pace = np.array([[0, 0.9, 0, 1]])
colors_innpro = np.array([[0.9, 0, 0.9, 1]])


fig, axes = plt.subplots(nrows=5, ncols=2, figsize=(16,16))
for idx_plot, idx in enumerate(np.random.choice(n_obs, 5)):
    for idx_data, (dd, dd_numint, dd_innpro) in enumerate(zip(kl.data.data, data_recons_numint.data, data_recons_innpro.data)):
        axes[idx_plot, idx_data] = plot(dd[idx], ax=axes[idx_plot, idx_data], label='True')
        axes[idx_plot, idx_data] = plot(dd_numint[idx], colors=colors_numint, ax=axes[idx_plot, idx_data], label='Reconstruction NumInt')
        axes[idx_plot, idx_data] = plot(dd_innpro[idx], colors=colors_innpro, ax=axes[idx_plot, idx_data], label='Reconstruction InnPro')
        axes[idx_plot, idx_data].legend()
plt.show()
