MFPCA of 2-dimensional data

Example of multivariate functional principal components analysis of 2-dimensional data.

# Author: Steven Golovkine <steven_golovkine@icloud.com>
# License: MIT

# Load packages
import matplotlib.pyplot as plt
import numpy as np

from FDApy.simulation.karhunen import KarhunenLoeve
from FDApy.preprocessing.dim_reduction.fpca import MFPCA
from FDApy.visualization.plot import plot

# Set general parameters
rng = 42
n_obs = 50
idx = 5


# Parameters of the basis
name = ['bsplines', 'fourier']
n_functions = 5
dimension = ['2D', '2D']
argvals = [np.linspace(0, 1, 21), np.linspace(0, 1, 21)]

We simulate \(N = 50\) curves of a 2-dimensional process. The first component of the process is defined on the two-dimensional observation grid \(\{0, 0.05, 0.1, \cdots, 1\} \times \{0, 0.05, 0.1, \cdots, 1\}\), based on the tensor product of the first \(K = 5\) B-splines basis functions on \([0, 1] \times [0, 1]\) and the variance of the scores random variables equal to \(1\). The second component of the process is defined on the two-dimensional observation grid \(\{0, 0.05, 0.1, \cdots, 1\} \times \{0, 0.05, 0.01, \cdots, 1\}\), based on the tensor product of the first \(K = 5\) Fourier basis functions on \([0, 1] \times [0, 1]\) and the variance of the scores random variables equal to \(1\).

kl = KarhunenLoeve(
    basis_name=name,
    n_functions=n_functions,
    argvals=argvals,
    dimension=dimension,
    add_intercept=False,
    random_state=rng
)
kl.new(n_obs=50)
data = kl.data


# Plot of the data

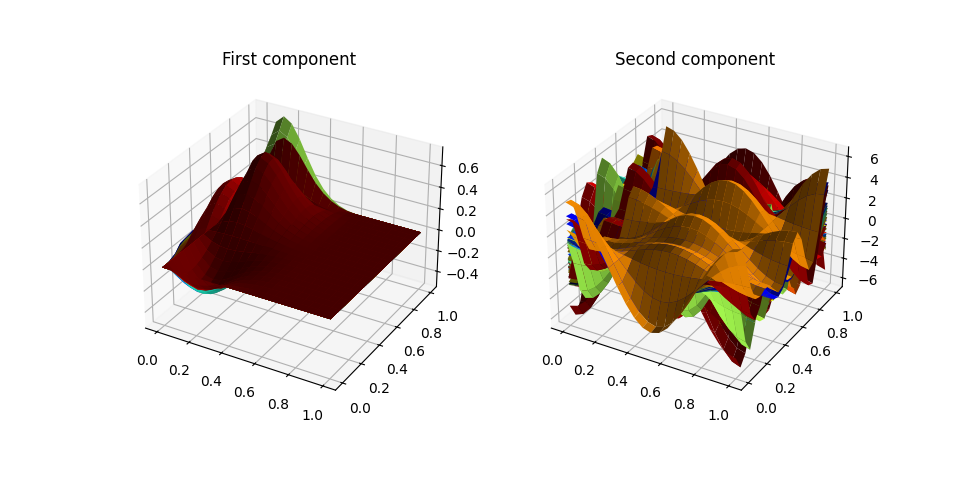

fig = plt.figure(figsize=plt.figaspect(0.5))

ax = fig.add_subplot(1, 2, 1, projection='3d')
ax = plot(data.data[0], ax=ax)
ax.set_title('First component')

ax = fig.add_subplot(1, 2, 2, projection='3d')
ax = plot(data.data[1], ax=ax)
ax.set_title('Second component')

plt.show()

Covariance decomposition

Perform multivariate FPCA with a prespecified number of components using the decomposition of the covariance operator. The decomposition of the covariance operator is based on the FCP-TPA algorithm, which is an iterative algorithm. The number of components has thus to be prespecified.

mfpca_cov = MFPCA(n_components=[5, 5], method='covariance')
mfpca_cov.fit(data)

/home/docs/checkouts/readthedocs.org/user_builds/fdapy/checkouts/v1.0.0/FDApy/representation/functional_data.py:832: UserWarning: The estimation of the variance of the noise is not performed for data with dimension larger than 1 and is set to 0.
  warnings.warn((

Estimate the scores – projection of the curves onto the eigenfunctions – by numerical integration.

scores_cov = mfpca_cov.transform(data, method='NumInt')

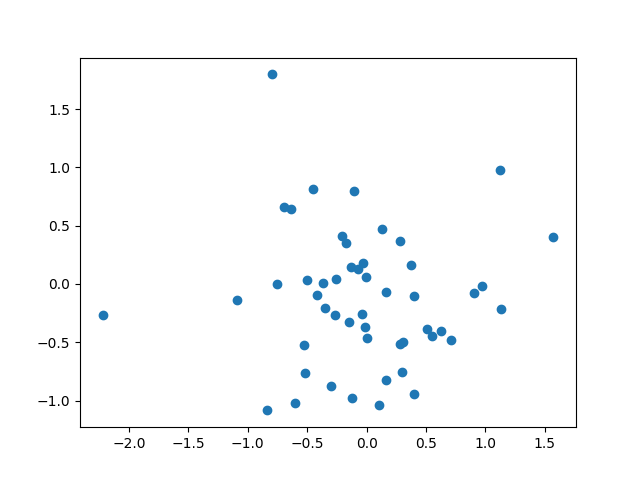

# Plot of the scores
_ = plt.scatter(scores_cov[:, 0], scores_cov[:, 1])

Reconstruct the curves using the scores.

data_recons_cov = mfpca_cov.inverse_transform(scores_cov)

Inner-product matrix decomposition

Perform multivariate FPCA with an estimation of the number of components by the percentage of variance explained using a decomposition of the inner-product matrix.

mfpca_innpro = MFPCA(n_components=5, method='inner-product')
mfpca_innpro.fit(data)

/home/docs/checkouts/readthedocs.org/user_builds/fdapy/checkouts/v1.0.0/FDApy/representation/functional_data.py:832: UserWarning: The estimation of the variance of the noise is not performed for data with dimension larger than 1 and is set to 0.
  warnings.warn((

Estimate the scores – projection of the curves onto the eigenfunctions – using the eigenvectors from the decomposition of the inner-product matrix.

scores_innpro = mfpca_innpro.transform(method='InnPro')

# Plot of the scores
_ = plt.scatter(scores_innpro[:, 0], scores_innpro[:, 1])

Reconstruct the surfaces using the scores.

data_recons_innpro = mfpca_innpro.inverse_transform(scores_innpro)

Plot an example of the curve reconstruction

indexes = np.random.choice(n_obs, 5)

# For the first component
fig, axes = plt.subplots(nrows=5, ncols=3, figsize=(16,16))
for idx_plot, idx in enumerate(indexes):
    axes[idx_plot, 0] = plot(data.data[0][idx], ax=axes[idx_plot, 0])
    axes[idx_plot, 0].set_title('True')

    axes[idx_plot, 1] = plot(data_recons_cov.data[0][idx], ax=axes[idx_plot, 1])
    axes[idx_plot, 1].set_title('FCPTPA')

    axes[idx_plot, 2] = plot(data_recons_innpro.data[0][idx], ax=axes[idx_plot, 2])
    axes[idx_plot, 2].set_title('InnPro')

plt.show()


# For the second component
fig, axes = plt.subplots(nrows=5, ncols=3, figsize=(16,16))
for idx_plot, idx in enumerate(indexes):
    axes[idx_plot, 0] = plot(data.data[1][idx], ax=axes[idx_plot, 0])
    axes[idx_plot, 0].set_title('True')

    axes[idx_plot, 1] = plot(data_recons_cov.data[1][idx], ax=axes[idx_plot, 1])
    axes[idx_plot, 1].set_title('FCPTPA')

    axes[idx_plot, 2] = plot(data_recons_innpro.data[1][idx], ax=axes[idx_plot, 2])
    axes[idx_plot, 2].set_title('InnPro')

plt.show()

•
•
